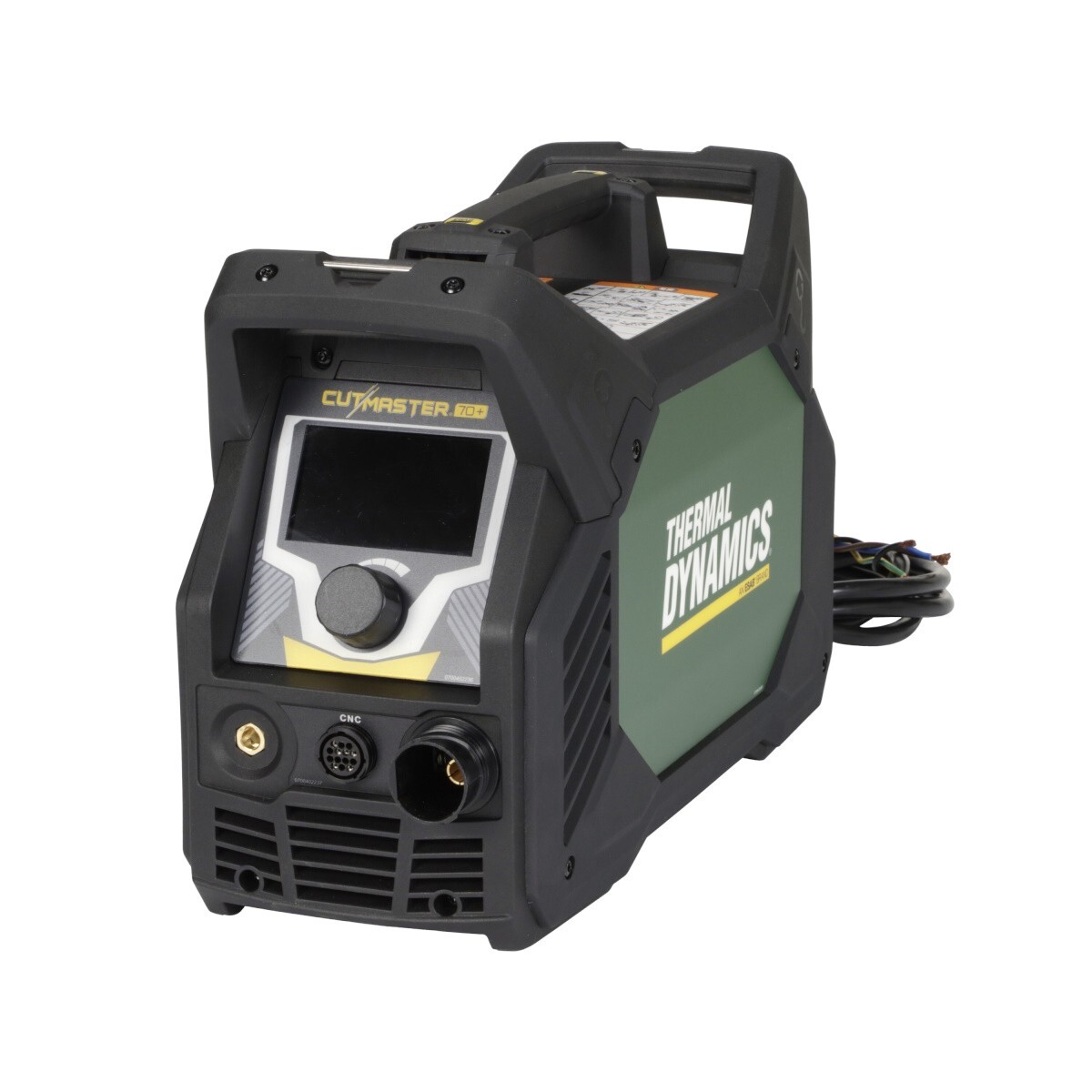

Thermal Dynamics Cutmaster 70+ Plasma Cutter 120/240V (1-7000-1)
Thermal Dynamics Cutmaster 70+ Plasma Cutter 120/240V (1-7000-1)
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Thermal Dynamics |
| Type | PLASMA CUTTER |
| Model | Cutmaster 70+ |
| MPN | 1-7000-1 |
| Item Type | Plasma Cutter |

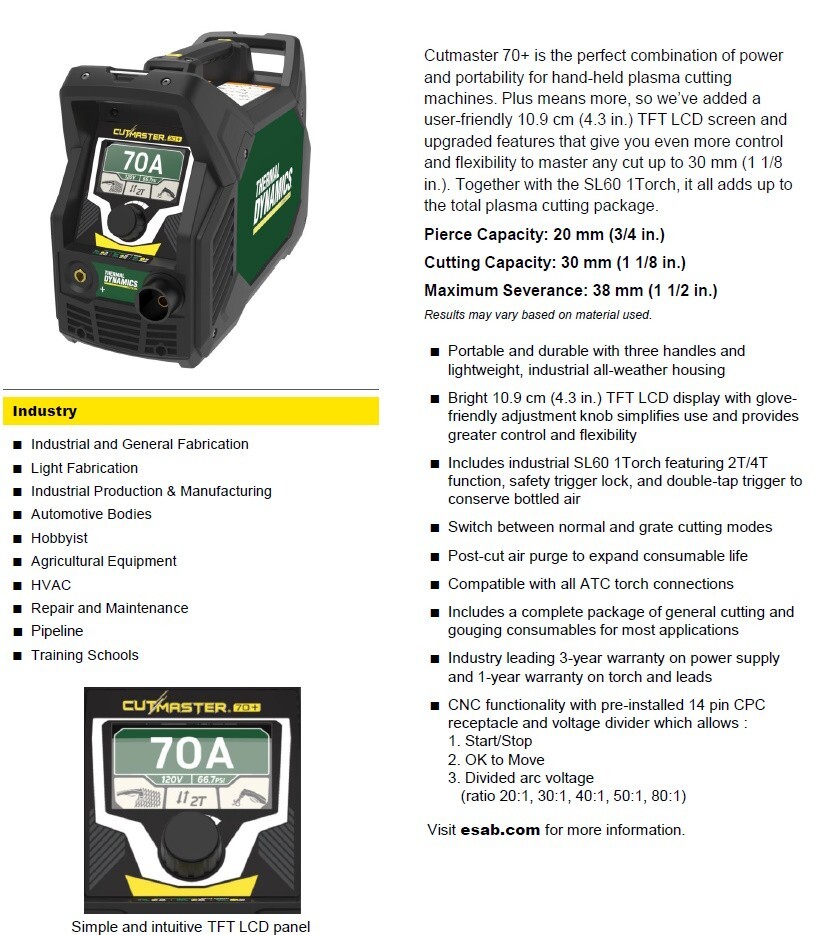

The Thermal Dynamics Cutmaster 70+ Plasma Cutter (1-7000-1) features a rugged, weather-proof, three-handle case that better protects the unit, especially during transportation in a job box or back of a work truck. The handles make it easier to move the unit in tight quarters, as well as help organize the cables when moving it. This workhorse packs a 40% Duty Cycle at 70 Amp output (using 240V power). Automatic voltage input detection from 110-240V means you plug it in and the machine will automatically set the max output; 25 amps for 110 and 70 amps for 200-240V. It's that easy! Features Portable, lightweight (39 lbs), all weather housing 4.3 Inch LCD Display with glove friendly adjustment knob 2T/4T, safety trigger lock, and double tap trigger to conserve air Normal/Grate cutting modes Post-cut air purge to extend consumable life Pre-installed CPC port The Cutmaster 70+ comes with the proven SL60 1Torch with 16-ft. torch lead, which is up to 4 ft. longer than competitive torches. Because it uses Thermal Dynamic’s ATC torch connection (standard on all Cutmaster units), users can connect an additional 25-ft or 50-ft. length of torch lead. The work cable uses a standard 25mm Dinse connection, while the robust work clamp creates a strong electrical connection. The SL60 1Torch comes with the Cutmaster Black Series electrodes, which extend operating life by up to 60 percent. As a result, they lower cutting cost and downtime, as well as maintain cut performance over a longer time period. ESAB backs the Cutmaster 70+ with a 3-year warranty on the power supply and a 1-year warranty on the 1Torch. Comes with: • Cutmaster 70+ Power Supply (10 ft Power Cord w/220V NEMA 6-50P Plug) • 16 Ft SL60 75 degree torch with lead • Work lead with ground clamp • Input power adapter for 240V to 120V • 1/4 in. NPT air fitting with quick connect • Operating manual • Spare parts kit • 2 Black Series Electrodes (9-8214) • 2 40A Tips (9-8208) • 1 Start Cartridge (9-8213) • 1 Shield Cap (9-8235) • 1 Shield Cup (9-8237) • 1 Shield Cup (9-8218) • 1 Shield Deflector (9-8243) • 1 Standoff Guide • 1 30A Drag Tip (9-8206)
