Spring Collet Chuck ER-25 Spring Collet 3mm Clamping Diameter 40Cr Steel
Spring Collet Chuck ER-25 Spring Collet 3mm Clamping Diameter 40Cr Steel
Specifications
| Brand | Metallixity |
| UPC | 724117544454 |

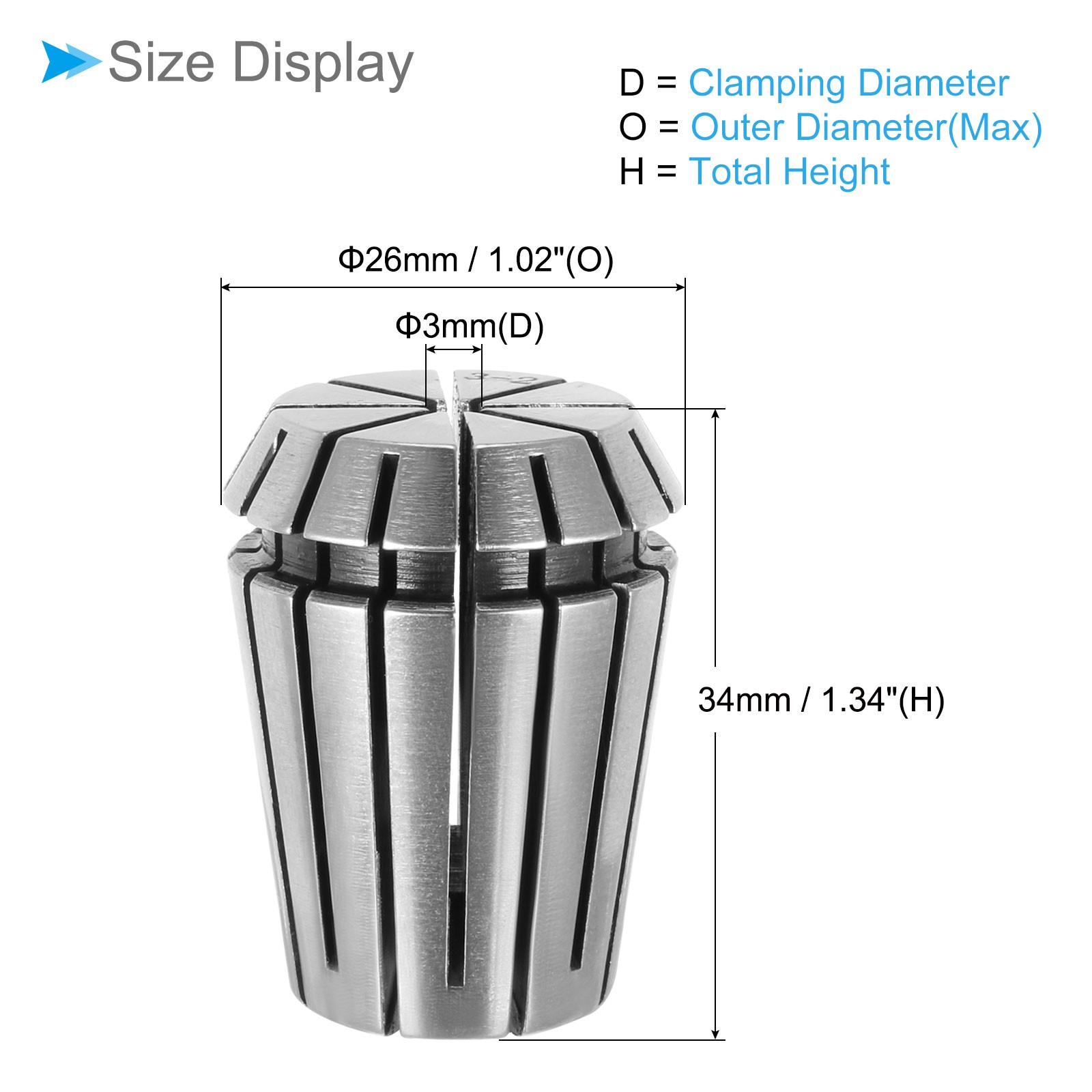

Attributes: * Model: ER25* Clamping Diameter: 3mm* Material: 40Cr Steel* Precision: 0.015mm / 0.0006-inch* Total Height: 34mm / 1.34-inch* Outer Diameter(Max): 26mm / 1.02-inchWhat Is Included: * 1 Pieces x Spring ColletApplications & Features:--- The spring collet is specifically designed for use with CNC milling and engraving machines. It provides reliable clamping and work holding capabilities during machining processes.--- To replace the engraving tool, loosen the nut using a wrench to remove the chuck and engraving tool. Push the collet to release it from the nut, allowing for easy removal.Useful Tips:--- Ensure proper usage by placing the collet into the collet chuck nut before inserting it into the collet chuck. This simple step ensures a secure fit.
