Specifications

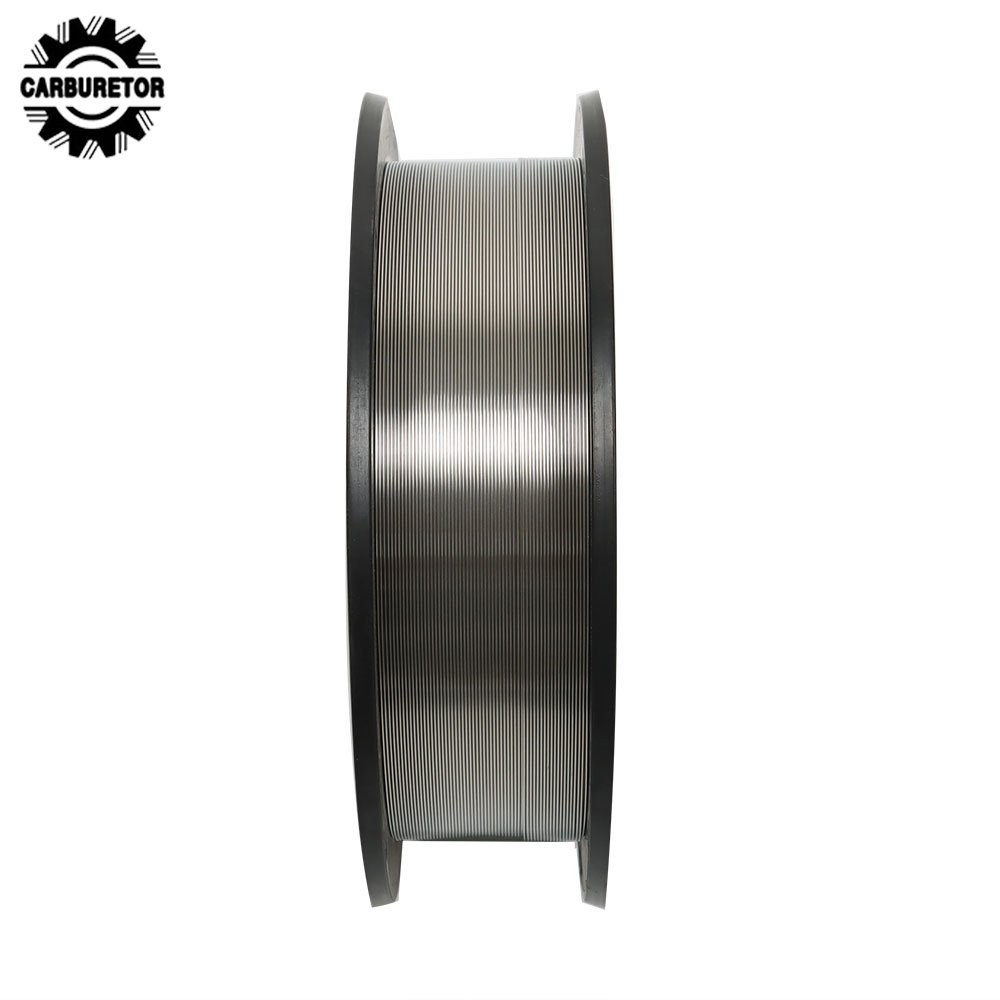

Fitment: AWS Specification: AWS A5.9/A5.9M:2006 AWS Classification: ER308; ER308L Welding Current: DCEP Typical Wire Chemistry: C 0.08/Cr 19.5 - 22.0/Ni 9.0 - 11.0/Mo 0.75/Mn 1.0 - 2.5/Si 0.30 - 0.65/P 0.03/S 0.03/Cu 0.75 ER308/308L is used for welding types 304,304L, 308, and 308L stainless steels. It is verysimilar to type 308, but has a carbon content held to a max of .03% to avoid carbide precipitation. This product can also be used for welding types 321 and 347 stainless steels. This wire is suitable for applications at cryogenic temperatures. Typical Mechanical Properties(As Welded): Yield Strength, ksi 59 Tensile Strength, ksi 88 Elongation%, min 39 Welding Positions: F,V,OH,H .

Related Items

Indium Foil Sheet Ribbon 99.999%, 1.0″ by 12.0″ (25mm by 305mm); 8 thicknesses

Stark Industrial 130 MIG Welder Flux Core Wire Automatic Feed Welding Machine

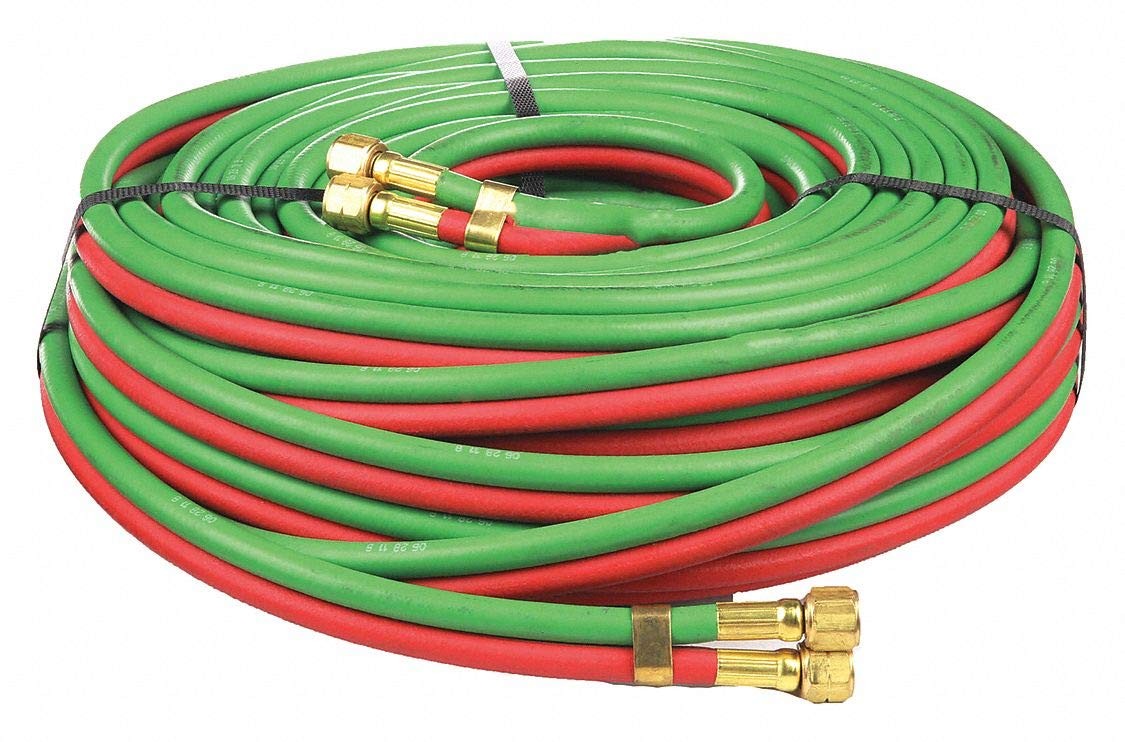

RADNOR WELDING HOSE RAD64003327, 1/4″ , 100′ L, BB FITTINGS, GRADE R *SHIPS FREE

E7018 (10lbs x 6Pcs) 1/8″ Premium Arc Welding Rods Carbon Steel Electrode 60lbs

Chicago Electric Welding Systems 80 Amp Arc Welder Hobby Welder W/ Cables, Rods+

Chicago Electric Fit Spot Welding Tips 1/8″ Contact Area 2 Pairs

Premium Indium Foil Sheet 99.999%, 4.0″ by 4.0″ (100mm by 100mm); 8 thicknesses

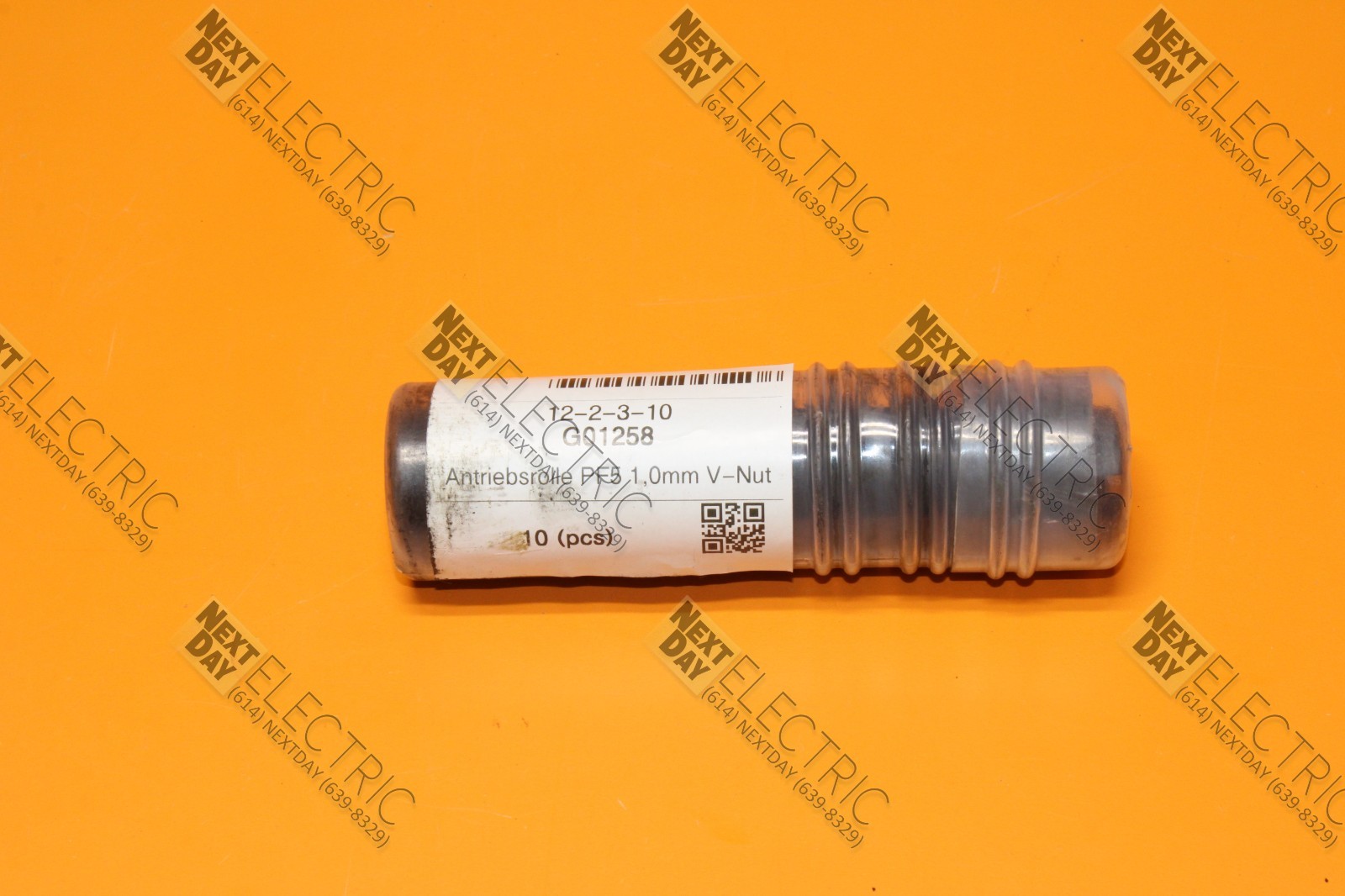

SKS, 12-2-3-10, G01258, Antriebsrolle PF5 1.0mm F-Nut Wire Feeder Roller Welder
